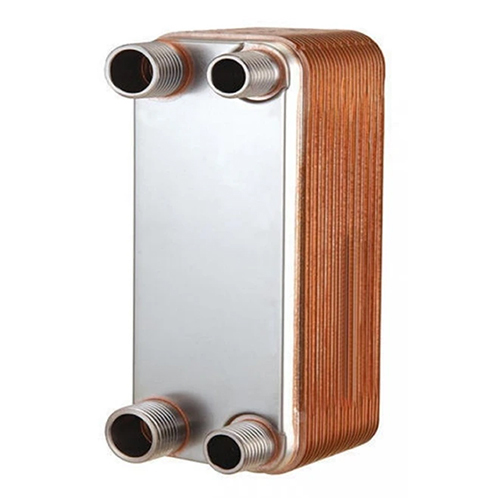

Brazed Plate Heat Exchanger

Price 5000.00 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Brazed Plate Heat Exchanger Specification

Max. Capacity
Up to 100 kW (varies by type) Kilogram(Kg)

Max Pressure
40 bar ft3/min (CFM)

Temperature
b, j, [, o, e, c, t, , O, b, j, e, c, t, ] Celsius (oC)

Thickness
Per Plate: 0.4 mm-0.6 mm Millimeter (mm)

Number of Pipe
4 Connections

Air Volume
NA ft3/min (CFM)

Diameter
Port Diameter: 3/4 (19.05 mm) or as per model Millimeter (mm)

Usage
Water Cooling, Oil Cooling, Refrigerant cooling

Condition
New

Structure
Plate Heat Exchanger

Size
1/2" to 2" connection

Liquid Flow Rate
1-10 m3/h (varies by model) Cubic m/s

Height
550 Millimeter (mm)

Working Presssure
Up to 40 bar

Product Type
Brazed PHE

Voltage
NA Volt (v)

Power
NA Horsepower (HP)

Weight
Approx. 2.5 kg Kilograms (kg)

Color
Silver

Length
15 Millimeter (mm)

Dimensions
200 mm x 80 mm x 60 mm (typical) Millimeter (mm)

Width
150 Millimeter (mm)

Plate Pattern
Herringbone Pattern

Material of Plates
AISI 316 Stainless Steel

Service Life
20+ years (with proper handling)

Brazing Material
Copper

Maintenance
Maintenance-Free/Brazed Sealed Unit

Corrosion Resistance
High

Heat Transfer Area
0.03 m2 - 0.55 m2 (model dependent)

Mounting
Vertical or Horizontal

Application
HVAC, Heat Recovery, Refrigeration, Oil Cooling

Brazed Plate Heat Exchanger Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Per Month

Delivery Time
7 Days

Main Domestic Market
All India

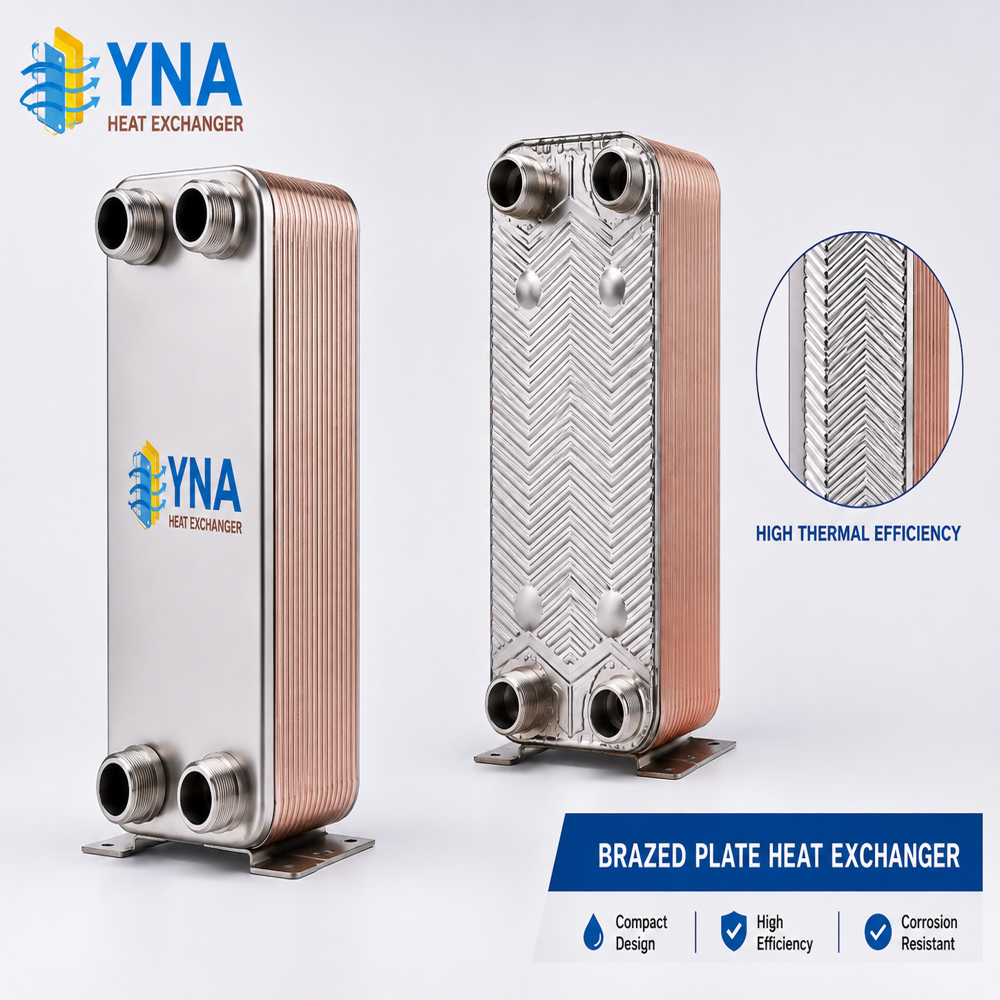

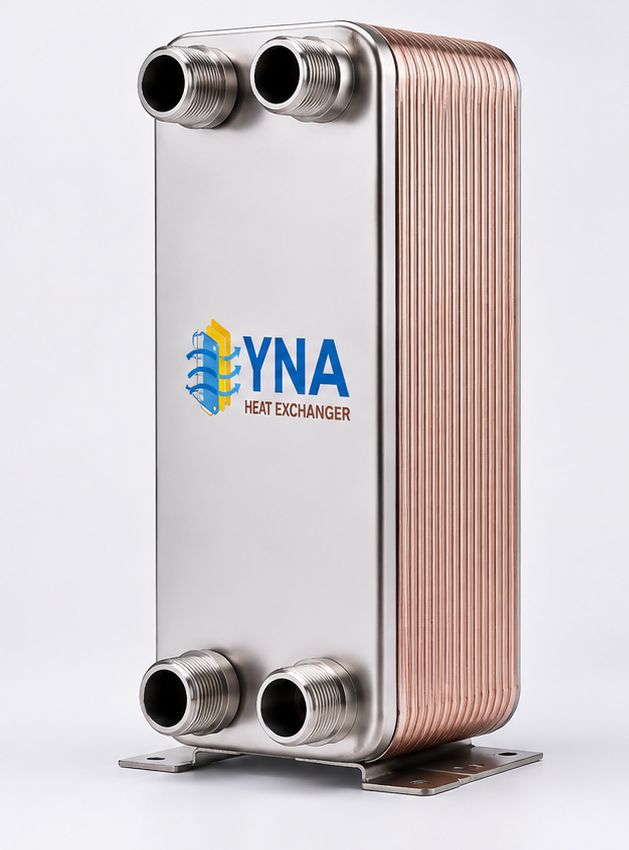

Brazed Plate Heat Exchanger About

Capitalise on commanding performance with our Top-rated Brazed Plate Heat Exchanger, featuring lavish AISI 316 Stainless Steel plates and superlative copper brazing for advanced corrosion resistance. Get efficient thermal transfer for HVAC, heat recovery, oil cooling, and refrigeration needs. Designed for flexibility, this maintenance-free, sealed unit tolerates working pressures up to 30 bar and extreme temperatures (-160C to +225C). With a robust herringbone pattern and a service life exceeding 20 years, our exchanger guarantees reliability, high flow rates, and maximum capacity up to 100 kW-setting a new standard for industrial excellence.

Premium Features & Simple Application

Our Brazed Plate Heat Exchanger boasts a robust herringbone plate pattern, optimal for turbulent fluid dynamics and heat transfer efficiency. Direction of use is flexible-mount vertically or horizontally depending on space and requirement. To install, connect the four ports (diameter: 3/4" or model-specific) to your existing piping. This unit excels in applications like HVAC, oil cooling, refrigeration, and heat recovery, supporting a broad heat transfer area from 0.03 m2 to 0.55 m2 (model specific).

Seamless Supply & Fast Shipping Worldwide

We offer consistent supply ability to cater to both domestic and international markets, ensuring prompt order completion and express shipping for all demands. Serving major export markets across Asia, Europe, and Africa, our main FOB port is located in India. Bulk orders are processed swiftly, and we offer tailored packaging for global transport. Partner with us for reliable solutions-contact us today to experience our superior heat exchanger and outstanding delivery services.

FAQ's of Brazed Plate Heat Exchanger:

Q: How does the herringbone pattern in the heat exchanger benefit thermal performance?

A: The herringbone plate pattern creates turbulent flow, which enhances heat transfer efficiency by increasing surface contact and reducing fouling, ensuring superlative thermal performance across various applications.

Q: What steps are involved in installing the Brazed Plate Heat Exchanger?

A: The unit is designed for straightforward installation-simply connect the four pipe connections to your system, ensuring correct inlet and outlet orientation for optimal flow direction. It can be mounted either vertically or horizontally based on spatial requirements.

Q: Which industries and processes can capitalise on this heat exchanger?

A: This heat exchanger is ideal for HVAC, oil cooling, heat recovery, and refrigeration, making it versatile for industrial, commercial, and residential environments where highly efficient heat transfer and durability are essential.

Q: When should I consider replacing the unit?

A: With proper handling and routine inspection of system conditions, the brazed plate heat exchanger boasts a service life of over 20 years. Replacement is usually considered only if there is visible corrosion, leaking, or performance drop.

Q: What makes this unit maintenance-free?

A: The brazed and sealed construction eliminates the need for routine internal maintenance, as the robust stainless steel plates and copper brazing are engineered to resist corrosion and scaling over extended operational periods.

Q: Where can I order and receive the product?

A: We supply from India and offer express worldwide shipping. Orders can be placed directly with us, and we ensure rapid delivery through established export channels and our main FOB port in India.
