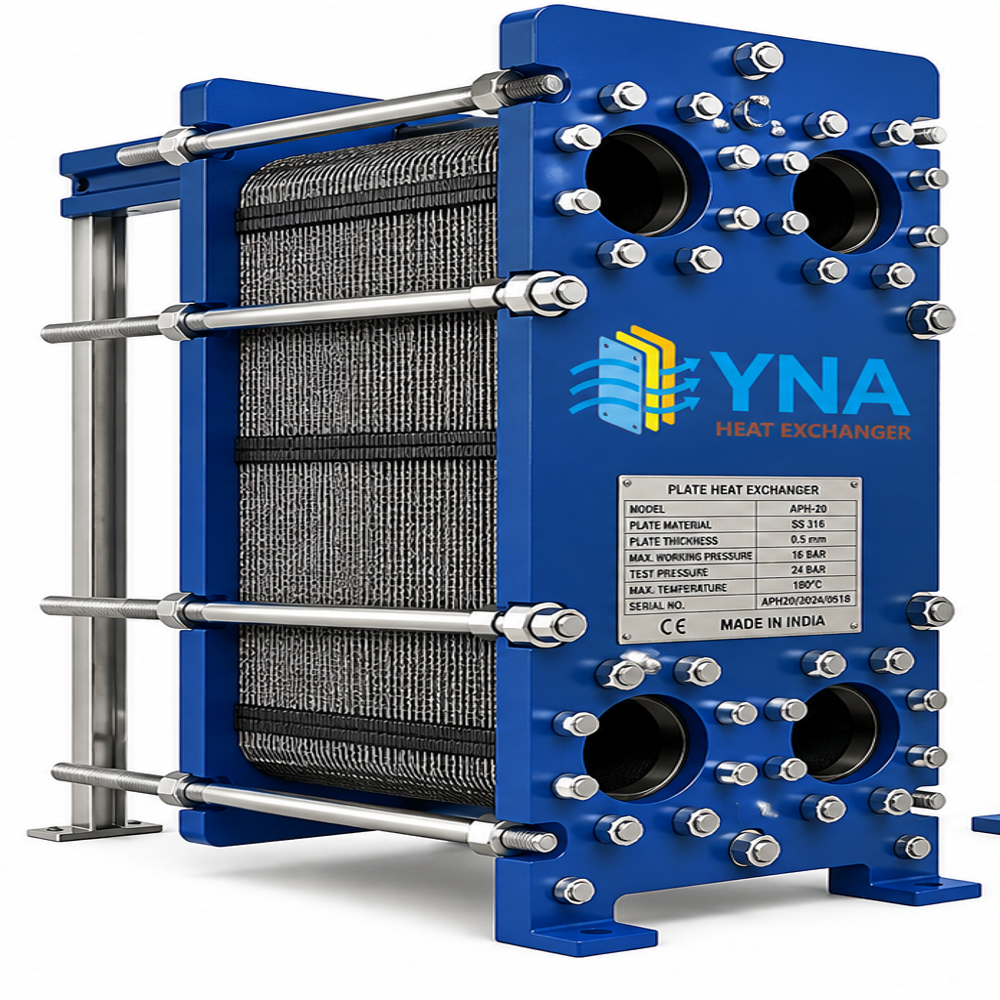

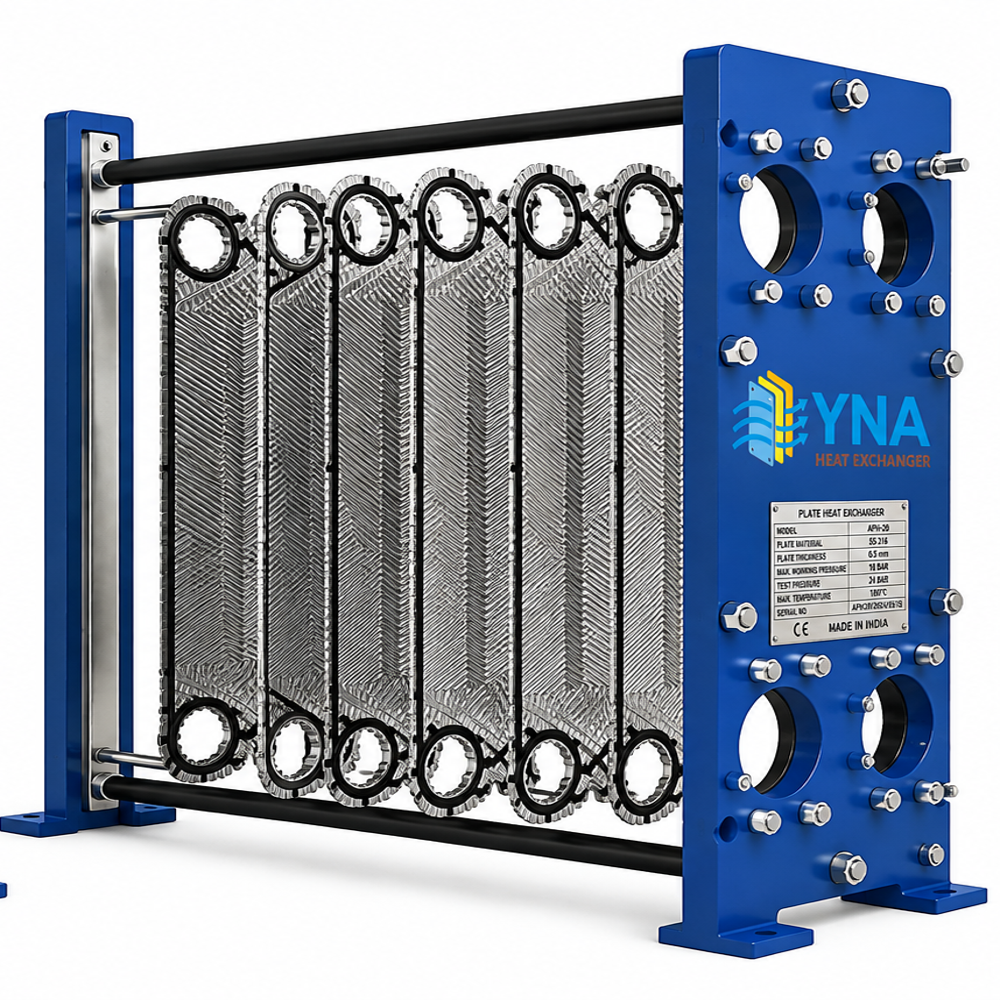

Gasketed Plate Heat Exchanger

Price 12000.00 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Gasketed Plate Heat Exchanger Specification

Air Volume
NA ft3/min (CFM)

Thickness
Plate thickness from 0.5 mm to 1.2 mm Millimeter (mm)

Temperature
[, e, c, o, b, j, e, t, , O, b, j, c, t, ] Celsius (oC)

Max Pressure
Up to 25 bar m3/hr

Number of Pipe
4 connection ports; no pipes inside unit

Max. Capacity
Depends on plate size, 30 kW - 2000 kW Cubic Meter Per Hour (m3/h)

Diameter
Inlet/Outlet 25 mm to 300 mm (as per design) Millimeter (mm)

Condition
New

Usage
Oil Cooling, Water Cooling, Chemical Cooling

Structure
Plate Heat Exchanger

Size
1" to 10" connection

Liquid Flow Rate
Up to 2000 m3/h (depending on size/model) Cubic m/s

Height
300-2000 Millimeter (mm)

Working Presssure
Up to 25 bar (varies by design)

Product Type
Plate Heat Exchanger

Voltage
Not applicable (passive device) Volt (v)

Power
Not applicable (passive device) Horsepower (HP)

Color
Blue

Weight
Varies with model (typically 80-1500 kg) Kilograms (kg)

Dimensions
Customized as per requirement (commonly 800mm x 1200mm x 1000mm and up) Millimeter (mm)

Length
250-1000 Millimeter (mm)

Width
320 Millimeter (mm)

Connection Type
Threaded/Flanged

Gasket Material
NBR, EPDM, Viton

Heat Transfer Surface Area
Up to 4000 m2 (depends on number of plates)

Plate Material
Stainless Steel (AISI 304/316), Titanium options

Frame Material
Carbon Steel with corrosion-resistant coating

Cleaning Method
Easy dismantling for cleaning & maintenance

Application
HVAC, Chemical, Food & Beverage, Energy, Pharmaceutical industries

Mounting
Floor-Mounted

Media
Liquid-to-Liquid/Steam

Flow Arrangement
Counterflow or parallel flow

Plate Type
Chevron type corrugated plates

Gasketed Plate Heat Exchanger Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Per Month

Delivery Time
7 Days

Main Domestic Market
All India

Gasketed Plate Heat Exchanger About

Discover an unrivaled, prodigious solution with our Special Gasketed Plate Heat Exchanger, designed for superior performance in demanding thermal applications. Available for a limited time at a remarkable markdown, it boasts premium stainless steel (AISI 304/316) or titanium plates and a rugged, corrosion-resistant carbon steel frame. Select from NBR, EPDM, or Viton gaskets for optimal compatibility. With capacities up to 2000 kW and heat transfer surfaces scaling 4000 m2, this floor-mounted unit ensures best-in-class, maintenance-friendly heat exchange for diverse industrial environments.

Exceptional Features & Versatile Applications

This Gasketed Plate Heat Exchanger offers extra features including easy dismantling for cleaning, robust gasket choices, and the flexibility of threaded or flanged connections. Suitable for both liquid-to-liquid and steam processes, its chevron-type corrugated plates maximize efficiency in HVAC, chemical, pharmaceutical, food & beverage, and energy industries. The system's versatile configuration and extensive media compatibility make it the preferred option for challenging industrial heat transfer demands.

Payment Terms, Delivery & Packaging Information

Competitive list pricing is provided to accommodate varying project expenditures. Delivery is streamlined and safe, with packaging designed to protect the exchanger's prodigious structure during transit. Payment terms are flexible, supporting convenient procurement. Sample availability allows clients to assess product quality beforehand, ensuring satisfaction prior to large-scale orders. Marked by professionalism and reliability, our delivery process ensures your equipment arrives promptly and in optimal condition.

FAQ's of Gasketed Plate Heat Exchanger:

Q: How does the gasket material selection affect heat exchanger performance?

A: Choosing the right gasket material (NBR, EPDM, or Viton) ensures compatibility with process fluids and operating temperatures, maximizing durability and sealing efficiency in the Gasketed Plate Heat Exchanger.

Q: What applications benefit most from this Special Gasketed Plate Heat Exchanger?

A: This heat exchanger is best suited for HVAC, chemical processing, food and beverage, energy production, and pharmaceutical industries thanks to its high efficiency, easy maintenance, and robust construction.

Q: Where can this heat exchanger be installed within an industrial facility?

A: The unit is designed for floor mounting and can be integrated seamlessly into centralized thermal systems, utility rooms, or as part of process equipment lines depending on your requirements.

Q: How easy is the cleaning and maintenance process?

A: The gasketed plate assembly allows for straightforward dismantling, enabling quick cleaning and gasket replacement with minimal downtime for ongoing, reliable service.

Q: What is the typical delivery time for this product?

A: Delivery schedules depend on customization preferences and order volume, but our logistics processes are optimized to ensure prompt and safe arrival of your new heat exchanger.

Q: What is the benefit of choosing a titanium plate option over stainless steel?

A: Titanium plates offer unrivaled resistance to aggressive and corrosive media, making them ideal for applications involving challenging fluids or extreme operating conditions.
